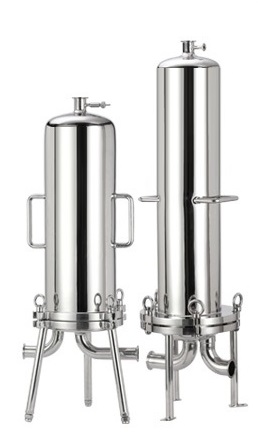

Sanitary Housing

A2F® MAKE Sanitary Housing

The single common inlet / outlet connection is suited for direct mounting on to most sealed storage vessels, whilst the quick release seal-less V-clamp closure allows for rapid filter change-outs. These housings are ideal where free movement of clean air is of prime importance. Customization accepted.

Product Features:

• Crevice free construction with hygienic single polished inlet/outlet port
• Quick release Vee clamp closure for ease of access – no seal required
• Lightweight easy lift dome
• No loose internals for trouble free operation
• ATEX compliant
• Specifically designed as a vent filter
• Single inlet/outlet that can be directly mounted onto tank
• Rated up to 150°C and available for 10” or 20” cartridges.

Over the past 20 years, there has been an explosion of technology and information. The speed, volume and complexity of work have increased dramatically in the 21st century, and at a2f each one is prepared to work in this fast-paced and demanding environment. Most of our established habits for being productive were created and popularized nearly 20 years ago-and leave us prepared for the speed,volume and complexity of our work and our lives. When you turn to a2f for filtration solutions , you get more than just high -performance products. Sure, our innovative technologies , help to serve you with speed , volume , complexity and anything in filtration is available out of your demand . We combine global resources, unmatched technical expertise and a commitment to responding to your unique needs - making us the single-source supplier for any filtration, certification & testing application. Call us and see why industries prefer a2f products. Finally it' s what you don 't see that makes all the difference. We request you please guide us so that we may register our company with your organization . Awaiting for your reference in purchase for interaction . We look forward to be of service to you with best regards all the time we remain.

Sanitary Housing

Features and Benefits

1.Bayonet lock code 7 cartridge fitting as standard for forward and reverse flow
2.316L construction for maximum corrosion resistance
3.Every housing is etched with a serial number for full traceability
4.Wide range of options available for the connection size and style, cartridge lengths and materials of construction
5.Full housing customisation service available

Specification

• Maximum Operating Conditions Temperature Range: -10 / 150ºC
• Materials of Construction Body and Closure: 316L St. Steel Clamp: 304 St. Steel
• Finish Vessel: Base 0.8µm Ra (clean side) with electropolish Dome internally pickled with external bright polish Connections Inlet/Outlet: 1 ½” Tri Clamp
