Dispensing and Sampling Booth

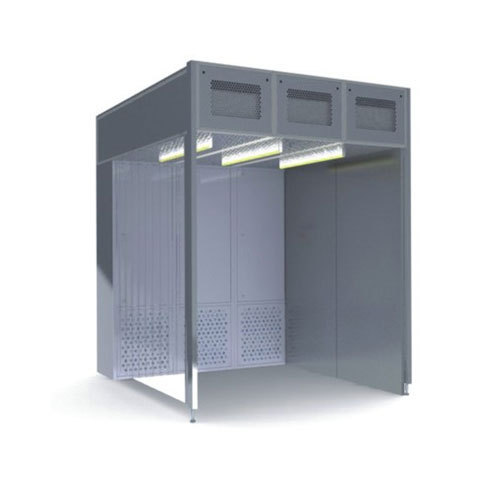

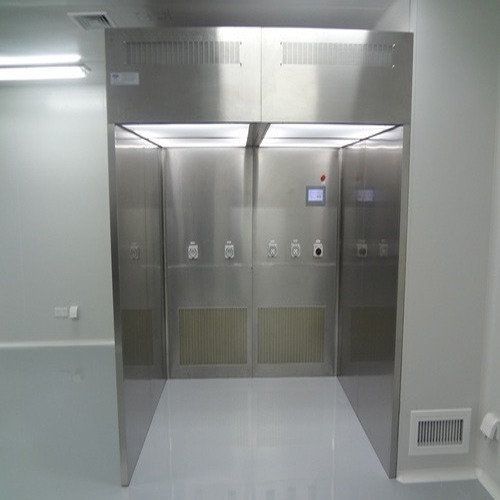

A2F® Make Dispensing and Sampling Booth

It is also known as Sampling or Dispensing Booth. It is used to control hazardous emissions of powder, dust or vapour during powder dispensing, drum tipping, product sampling, without risk to the operator or environment, and are available in wide modular range of sizes.

Main Design Features::

The work area is separated from the external environment by the following devices: The reverse laminar flow booth is formed by a stainless steel; AISI 304 Matt finished self-supporting structure, provided with rounded corners for easy cleaning.

• A negative pressure inside the booth prevents the escape of fine powder from the work area towards the external environment.

• A perforated diffuser panel made of stainless steel shields the upper filtration area.

• Specially designed Air Shower ensure barrier between clean room & non sterile contaminated area.

• 5/15 amps electrical points on the panel

• CFL lighting through diffuser provided on the panel

• Internal height can be adjusted as per requirements. Standard height is 6’/1830 mm.

Over the past 20 years, there has been an explosion of technology and information. The speed, volume and complexity of work have increased dramatically in the 21st century, and at a2f each one is prepared to work in this fast-paced and demanding environment. Most of our established habits for being productive were created and popularized nearly 20 years ago-and leave us prepared for the speed,volume and complexity of our work and our lives. When you turn to a2f for filtration solutions , you get more than just high -performance products. Sure, our innovative technologies , help to serve you with speed , volume , complexity and anything in filtration is available out of your demand . We combine global resources, unmatched technical expertise and a commitment to responding to your unique needs - making us the single-source supplier for any filtration, certification & testing application. Call us and see why industries prefer a2f products. Finally it' s what you don 't see that makes all the difference. We request you please guide us so that we may register our company with your organization . Awaiting for your reference in purchase for interaction . We look forward to be of service to you with best regards all the time we remain.

Specifications:

A2F® Make Dispensing and Sampling Booth

• Filters: Aluminum framed High efficiency Particulate air (HEPA),Mini Plate with a minimum efficiency of 99.99% at 0.3 micron.
• Hepa Filter: Aluminum framed High efficiency Particulate air (HEPA) with a minimum efficiency of 99.99% at 0.3 micron.
• Pre filter: Washable type pleated 10 Micron pre-filter with 90% efficiency. EU4 rating.
• Construction: Models available in 18 gauge (1.2 mm) stainless steel 304.
• Air flow: 90 FPM (0.45 m/s) 10 FPM (0.05 m/s) average velocity measured 6 in. (152.4 mm) from the diffuser screen. Uniformity 20% of average or better
• Pressure: Magnehelic pressure differential gauge Omicron USA Make
• Noise level: 65 5 DB measured from filter face.
• Motor / Blower assembly: Direct drive, continuous duty ¼ HP with sealed bearings. Motor assembly is mounted on M.S.casing to reduce noise & vibration and is dynamically balanced. Plenum: In stainless steel 304 for distribution of air. Designed in negative pressure to prevent escape and / or bypass of HEPA filter by contaminated air and / or dust.

Application :

• Product sampling, large scale dispensing, weighing
