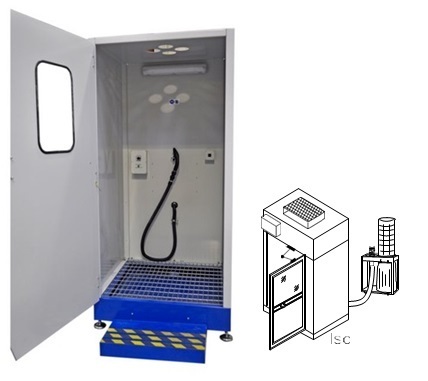

DEDUSTING BOOTH
A2F® DEDUSTING BOOTH
A2F® offers widest range of Laminar Air Flow Equipments, Dust Collectors, Filter Cleaning Booths , Fume Hood, De Dusting Booth, RLAF , Air Curtains, Lab Instrument Furniture’s, Chemical storage cabinets , SS furniture’s & Systems for the Application in the field of Scientific & Industrial Research, Micro Biology & Tissue Culture, Hospitals & Medical Education, Drugs & Pharmaceutical Industries, Electronics & Space Applications, etc. Our range of equipment & systems are designed with best of its quality & performance & are accepted by various Govt. & Private sector establishments across the nation.
Particular Advantages:
• No cross contamination.
• No risk or inhalation of product.
• Available with different filter types.
• Acrylic/glass around the working area.
• Easy to clean.
• It is equipped with a mechanical interlock system that prevents both the doors from being opened at the same time
• Pass Box includes Swing type doors with view panels.
• Door open indicator.
• Optional UV lamp Fluorescent tube light.
• Easy Filter Change Minipleat Design certified filters.
• Hair line finish in SS 304 Matt finish polished.
• Touch pad controls.
Over the past 20 years, there has been an explosion of technology and information. The speed, volume and complexity of work have increased dramatically in the 21st century, and at a2f each one is prepared to work in this fast-paced and demanding environment. Most of our established habits for being productive were created and popularized nearly 20 years ago-and leave us prepared for the speed,volume and complexity of our work and our lives. When you turn to a2f for filtration solutions , you get more than just high -performance products. Sure, our innovative technologies , help to serve you with speed , volume , complexity and anything in filtration is available out of your demand . We combine global resources, unmatched technical expertise and a commitment to responding to your unique needs - making us the single-source supplier for any filtration, certification & testing application. Call us and see why industries prefer a2f products. Finally it' s what you don 't see that makes all the difference. We request you please guide us so that we may register our company with your organization . Awaiting for your reference in purchase for interaction . We look forward to be of service to you with best regards all the time we remain.

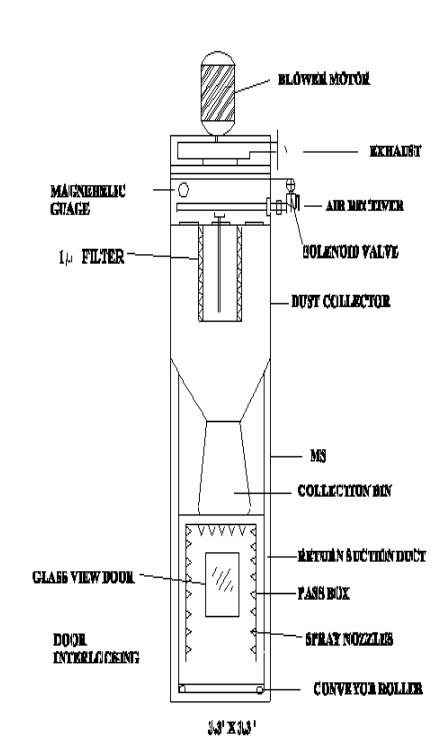

Construction :
• De-dusting booth (in SS304 - material of construction) -
.The Return air ducting will be routed between the
inner and outer skin.
• Air nozzles shall be suitably located at four sides -
within the chamber - to blow the air on various surface
of the DRUM or CARTON.
• The Filter is pleated 1 micron absolute PP spun bond
• Interlocking shall be provided based on the process
requirements.
• 200cfm Centrifugal Blower , CG make motor
150mm static pressure , 4-5 kg compressed
Air supply for spraying of RM packages
SS 304 1.2mm Hair line Finish , Double skin
Door Interlocking , with digital display
Customized design ,
Accessories :
Magnehelic Gauge, Wire Chord, Door Open Indicator,
Digital Display, Door Interlock, UV Light, Hour Meter.
• Clean room sterile dynamic pass through box is self
contained units with class 100 laminar air flow unit
installed at the entrance to the clean rooms.
• They minimize the amount of particulate contamination
entering the clean room by reducing the operator
traffic.
The A2F® De-dusting system is used to remove the loose
particles / dust present on the receiving materials, which
will be brought into the warehousing area before they are
transferred into the quarantine area.
To remove this dust, operators were previously using
compressed air nozzles. Recognizing this practice as being
extremely dangerous, A2F® team has found a safe
alternative. A2F® De-dusting Booth, a blower powered
personnel de-dusting system installed in a purpose-built
cubicle.
Spraying of Compressed Air on the Raw Material Packing
through SS 304 nozzles being designed for purpose
ensures removal of dust and powder particles which is
sucked by the Suction blower of Dust collector.
