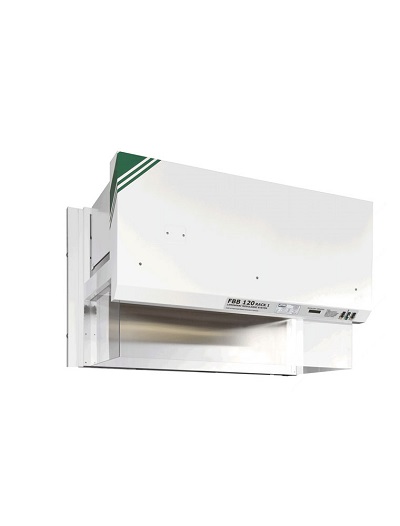

Hanging Laminar Air Flow Unit

A2F® Make Hanging Laminar Air Flow Unit

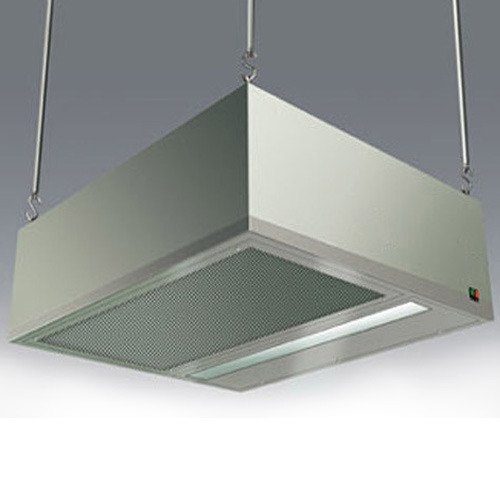

For The protection for sterile packing /filling machine in the pharmaceutical industries. Used where bacteria and particle can have a destructive effect on the final product. The unit is supplied either to be mounted in the ceiling 4 adjustable chains or with legs; Which optionally can be supplied with wheels. Our firm is known in the industry for manufacturing and exporting Hanging Laminar Air Flow Unit. This unit is used in rooms where the minimal presence of bacteria & particles can cause large damages. Our offered air flow unit is fixed or hanged on the wall. This Hanging Laminar Air Flow Unit is provided with four adjustable chains and legs. We also provide this with wheels, as per the requirements of customers.

Features:

• Vertical Laminar air flow

• Auxiliary Powder Socket

• Statically & Dynamically balanced Motor-blower

Over the past 20 years, there has been an explosion of technology and information. The speed, volume and complexity of work have increased dramatically in the 21st century, and at a2f each one is prepared to work in this fast-paced and demanding environment. Most of our established habits for being productive were created and popularized nearly 20 years ago-and leave us prepared for the speed,volume and complexity of our work and our lives. When you turn to a2f for filtration solutions , you get more than just high -performance products. Sure, our innovative technologies , help to serve you with speed , volume , complexity and anything in filtration is available out of your demand . We combine global resources, unmatched technical expertise and a commitment to responding to your unique needs - making us the single-source supplier for any filtration, certification & testing application. Call us and see why industries prefer a2f products. Finally it' s what you don 't see that makes all the difference. We request you please guide us so that we may register our company with your organization . Awaiting for your reference in purchase for interaction . We look forward to be of service to you with best regards all the time we remain.

Technical Specifications:

A2F® Make Hanging Laminar Air Flow Unit

• Air cleanliness : ISO Class 5 / Class 100 / M 3.5 AREA
• Air Velocities : 0.45
• Air Flow : Horizontal / Vertical
• Noise Level : Less than 65 dB
• Vibration Level : Minimum
• POWER SUPPLY : 230V AC
• MOC : GI Powder Coated / SS-304 / SS-316
• Two Stage filtration
• EU7 - Intermediate Filter (95% down to 3 micron)
• EU14 - HEPA Filter - Supply / Exhaust (99.999% down to 0.3 micron)
• Statically & Dynamically balanced Motor-blower with isolator to reduce noise level
• Fluorescent Lights
• Differential Pressure Gauges : 01 No. (HEPA Filter)
• ON/OFF Switches (BL / FL)
• DOP Port
• DQ, IQ, OQ, PQ Documentation

Accessories :

• A wide range of configurations to suit any containment application: -
• Rigid Barrier (Flexible PVC Strip / Poly carbonate / Acrylic Sheet)
• Velocity display with High / Low Alarms
• Filter chocking alarms
• Auxiliary Powder Socket : 5/15 Amp for external equipment
• FLP Electrical Goods for Explosion
