AIR SHOWER

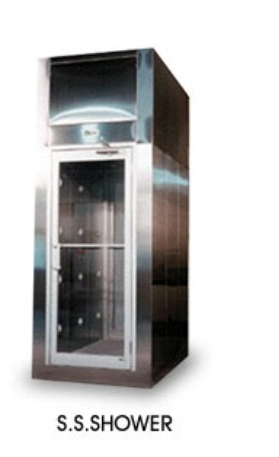

A2F® MAKE AIR SHOWER
A2F® offers widest range of Laminar Air Flow Equipments, Dust Collectors, Filter Cleaning Booths & Systems for the Application in the field of Scientific & Industrial Research, Micro Biology & Tissue Culture, Hospitals & Medical Education, Drugs & Pharmaceutical Industries, Electronics & Space Applications, etc. Our range of equipment & systems are designed with best of its quality & performance & are accepted by various Govt. & Private sector establishments across the nation. A2F® Air Shower removes surface deposited particles from personnel as they enter or exit a clean room. An electromagnetic interlock prevents that possibility of crosscontamination by allowing only one door at a time to open
Particular Advantages:
• Total 16 nozzles provided for single person entry level
• 360º adjustable air nozzles.
• Available with different types Size.
• Specially designed Air Shower ensure barrier between clean room & non sterile contaminated area.
• Easy to Installation. 6000FPM
• Hair line finish in SS 304 Matt finish polished
• Flame proof motor options is available
Over the past 20 years, there has been an explosion of technology and information. The speed, volume and complexity of work have increased dramatically in the 21st century, and at a2f each one is prepared to work in this fast-paced and demanding environment. Most of our established habits for being productive were created and popularized nearly 20 years ago-and leave us prepared for the speed,volume and complexity of our work and our lives. When you turn to a2f for filtration solutions , you get more than just high -performance products. Sure, our innovative technologies , help to serve you with speed , volume , complexity and anything in filtration is available out of your demand . We combine global resources, unmatched technical expertise and a commitment to responding to your unique needs - making us the single-source supplier for any filtration, certification & testing application. Call us and see why industries prefer a2f products. Finally it' s what you don 't see that makes all the difference. We request you please guide us so that we may register our company with your organization . Awaiting for your reference in purchase for interaction . We look forward to be of service to you with best regards all the time we remain.
Construction :
Models available in 18 gauge (1.2 mm) stainless steel 304
as well as in MS powder coated. The work area is
separated from the external environment by the following
devices:
• The Air Shower Unit is formed by 18 gauge (1.2mm)
stainless steel as well as MS Powder Coated.
• Compact Powerful motors for smooth starting.
• Aluminum fabricated statically and dynamically
balanced forward curve impellers
• Class of Cleanliness of Air as per ISO-14644 : ISO-5
• Final Filters : MiniPleat HEPA Filters.
• Secondary Filters : Fine Filter (5micron / 3micron).
• Velocity Of Air : 6000 fpm.
• Noise Level near Workstation : 65 dBA or less.
• Vibration Level at Work Surface : + 2-5 micrometer.
• Blowers (Centrifugal) : Aluminum Impeller, Capacitor
Start, Induction Run Non Flame Proof Motor
• Filter Condition Indicator : Magnehelic Gauges
• Test Conducted : Air Velocity Test, DOP Leak Test.
• Power Supply : 440V AC , 3 Phase. 10% exhaust , Pre & Fine cleanable filters
Validated with the following Test
. Air Velocity Test
ii. DOP Testing
• Pharma floating powder collection
• Semiconductor MFG Micro-electronics
• Paint Booth and Specialty Coating
• Hospitals
• Biotech Labs

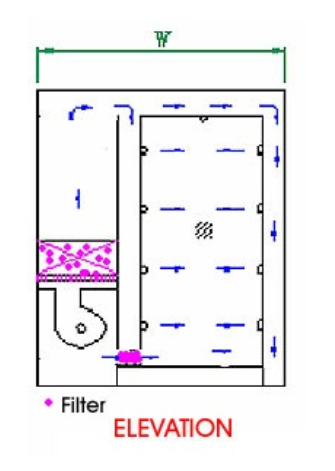

Air Shower is a double door enclosure, one door for entry to the enclosure and the other, the exit door that leads to the Clean room. The shower is equipped with high static blowers that discharges HEPA filtered
Magnehelic Gauge, Wire Chord, Door Open Indicator, Digital Display, Door Interlock.
