LAMINAR AIR FLOW UNIT

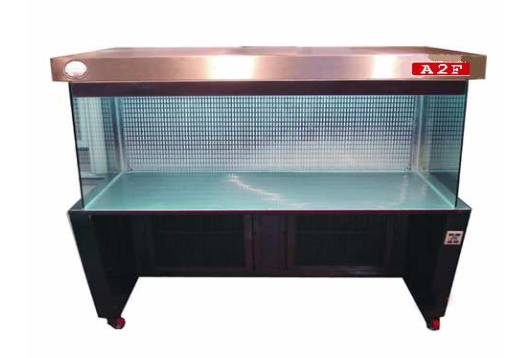

A2F® MAKE LAMINAR AIR FLOW UNIT
A2F® offers widest range of Laminar Air Flow Equipments, Dust Collectors, Filter Cleaning Booths & Systems for the Application in the field of Scientific & Industrial Research, Micro Biology & Tissue Culture, Hospitals & Medical Education, Drugs & Pharmaceutical Industries, Electronics & Space Applications, etc. Our range of equipment & systems are designed with best of its quality & performance & are accepted by various Govt. & Private sector establishments across the nation. The A2F® LAF Unit is also known as Horizontal / Vertical Laminar Air Flow Unit. Its an unidirectional airflow unit. Unidirectional airflow moving along parallel flow lines at a constant velocity minimizes air turbulence within the work area.
Particular Advantages:
• No cross contamination.
• No risk or inhalation of powders.
• Vertical / Horizontal laminar air flow.
• Available with different filter types.
• Acrylic/glass around the working area.
• Easy to clean.
• Easy HEPA filter exchange.
• Minipleat certified filters
• Pre-filter with magnetic latches
• Hair line finish in SS 304 Matt finish polished
• Touch pad controls , safety electrical design
• Option of Flame Proof Motor and Fittings available
Over the past 20 years, there has been an explosion of technology and information. The speed, volume and complexity of work have increased dramatically in the 21st century, and at a2f each one is prepared to work in this fast-paced and demanding environment. Most of our established habits for being productive were created and popularized nearly 20 years ago-and leave us prepared for the speed,volume and complexity of our work and our lives. When you turn to a2f for filtration solutions , you get more than just high -performance products. Sure, our innovative technologies , help to serve you with speed , volume , complexity and anything in filtration is available out of your demand . We combine global resources, unmatched technical expertise and a commitment to responding to your unique needs - making us the single-source supplier for any filtration, certification & testing application. Call us and see why industries prefer a2f products. Finally it' s what you don 't see that makes all the difference. We request you please guide us so that we may register our company with your organization . Awaiting for your reference in purchase for interaction . We look forward to be of service to you with best regards all the time we remain.
Construction :
Models available in 18 gauge (1.2 mm) stainless steel
304. The work area is separated from the external
environment by the following devices:
• The Horizontal / Vertical Laminar Air Flow Unit is
formed by a stainless steel as well as MS Powder
Coated.
• A negative pressure inside the unit prevents the
escape of fine product from the work area towards the
external environment.
• A physical barrier like Acrylic / Glass is provided.
Airflow provides full protection to operator and
product.
• A perforated diffuser panel made of stainless steel
shields the filtration area.
• Class of Cleanliness of Air as per ISO-14644 : ISO-5
• Final Filters : MiniPleat HEPA Filters.
• Primary Filters : Coarse Filters (20micron / 10micron).
• Velocity Of Air : 90+ 20% fpm.
• Noise Level near Workstation : 65 dBA or less.
• Light Intensity on Work Surface : 1000 Lux.
• Ultra Violet Light : 30w Philips.
• Vibration Level at Work Surface : + 2-5 micrometer.
• Blowers (Centrifugal) : Aluminum Impeller, Capacitor
Start, Induction Run Non Flame Proof Motor
• Filter Condition Indicator : Magnehelic Gauges
• Test Conducted : Air Velocity Test, DOP Leak Test &
Particle Count Test.
• Power Supply : 220V AC ,Single Phase.
• Validated with the following Test
i. Air Velocity Test
ii. DOP Testing
iii. Particle Count Test
iv. Air Flow Pattern Test
Magnehelic Gauge, Additional Power Point, Gas Inlet Nozzle, Floor Leveling Screw, Wire Chord.

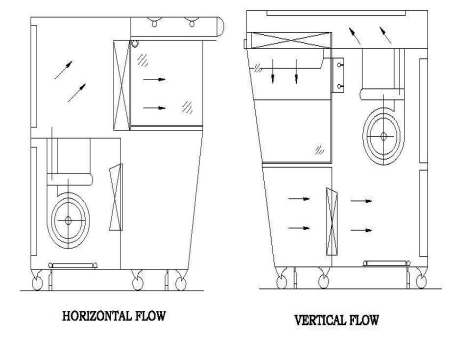

• Horizontal / Vertical Laminar Air Flow system provides
operation in sterile and particle free conditions by
continuous flushing of working area of unidirectional
vertical and ultra filtered airflow.
• It assures a full product protection.
• This type of Laminar air flow benches are used for
tissue culture applications.
• It provides more leg space & thereby helps to keep the
surrounding clean.
