PASS BOX

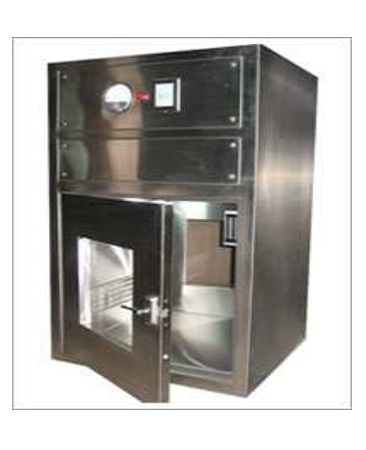

A2F® DYNAMIC PASS BOX

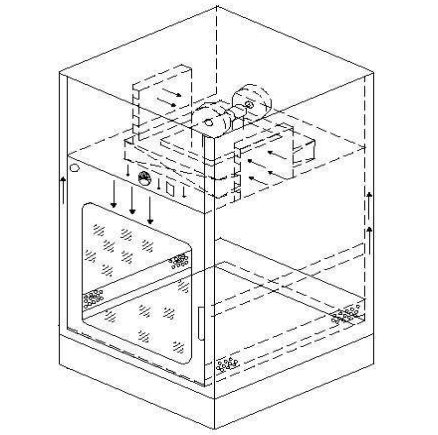

A2F® offers widest range of Laminar Air Flow Equipments, Dust Collectors, Filter Cleaning Booths & Systems for the Application in the field of Scientific & Industrial Research, Micro Biology & Tissue Culture, Hospitals & Medical Education, Drugs & Pharmaceutical Industries, Electronics & Space Applications, etc. Our range of equipment & systems are designed with best of its quality & performance & are accepted by various Govt. & Private sector establishments across the nation. The A2F® Dynamic Pass Box Unit is also known as Sterile Pass Box Unit. Its is an unidirectional airflow unit. HEPAfiltered vertical laminar airflow which is recirculated in the work zone creates an ultra-clean work environment for product protection
Particular Advantages:
• No cross contamination.
• No risk or inhalation of product.
• Available with different filter types.
• Acrylic/glass around the working area.
• Easy to clean.
• It is equipped with a mechanical interlock system that prevents both the doors from being opened at the same time.
• Pass Box includes Swing type doors with view panels.
• Door open indicator.
• Optional UV lamp Fluorescent tube light.
• Easy HEPA filter exchange.
• Minipleat certified filters.
• Hair line finish in SS 304 Matt finish polished.
• Touch pad controls.
Over the past 20 years, there has been an explosion of technology and information. The speed, volume and complexity of work have increased dramatically in the 21st century, and at a2f each one is prepared to work in this fast-paced and demanding environment. Most of our established habits for being productive were created and popularized nearly 20 years ago-and leave us prepared for the speed,volume and complexity of our work and our lives. When you turn to a2f for filtration solutions , you get more than just high -performance products. Sure, our innovative technologies , help to serve you with speed , volume , complexity and anything in filtration is available out of your demand . We combine global resources, unmatched technical expertise and a commitment to responding to your unique needs - making us the single-source supplier for any filtration, certification & testing application. Call us and see why industries prefer a2f products. Finally it' s what you don 't see that makes all the difference. We request you please guide us so that we may register our company with your organization . Awaiting for your reference in purchase for interaction . We look forward to be of service to you with best regards all the time we remain.
Construction :
Models available in 18 gauge (1.2 mm) stainless steel 304.
The work area is separated from the external environment
by the following devices:
• The Dynamic Pass Box Unit is formed by a stainless
steel 304.
• Airflow provides full protection to operator and product.
• A perforated diffuser panel made of stainless steel
shields the filtration area.
• Class of Cleanliness of Air as per ISO-14644 : ISO-5
• Final Filters : MiniPleat HEPA Filters.
• Primary Filters : Coarse Filters (10micron / 15micron).
• Velocity Of Air : 90+ 20% fpm.
• Noise Level near Workstation : 65 dBA or less.
• Ultra Violet Light : 30w Philips.
• Vibration Level at Work Surface : + 2-5 micrometer.
• Blowers (Centrifugal) : Aluminum Impeller, Capacitor
Start, Induction Run Non Flame Proof Motor
• Filter Condition Indicator : Magnehelic Gauges
• Test Conducted : Air Velocity Test, DOP Leak Test &
Particle Count Test.
• Power Supply : 220V AC ,Single Phase.
• Validated with the following Test
i. Air Velocity Test
ii. DOP Testing
iii. Particle Count Test
iv. Air Flow Pattern Test
• Clean room sterile dynamic pass through box is self
contained units with class 100 laminar air flow unit
installed at the entrance to the clean rooms.
• They minimize the amount of particulate contamination
entering the clean room by reducing the operator
traffic.
• Laminar flow in the pass box starts running, when the
doors are opened for material transfer in order to
maintain air cleanliness required for the product.
• It assures a full product protection.
Magnehelic Gauge, Wire Chord, Door Open Indicator, Digital Display, Door Interlock, UV Light, Hour Meter
